Gluing press |STH DV I

Manual, hand-hydraulic frame press for all light applications.

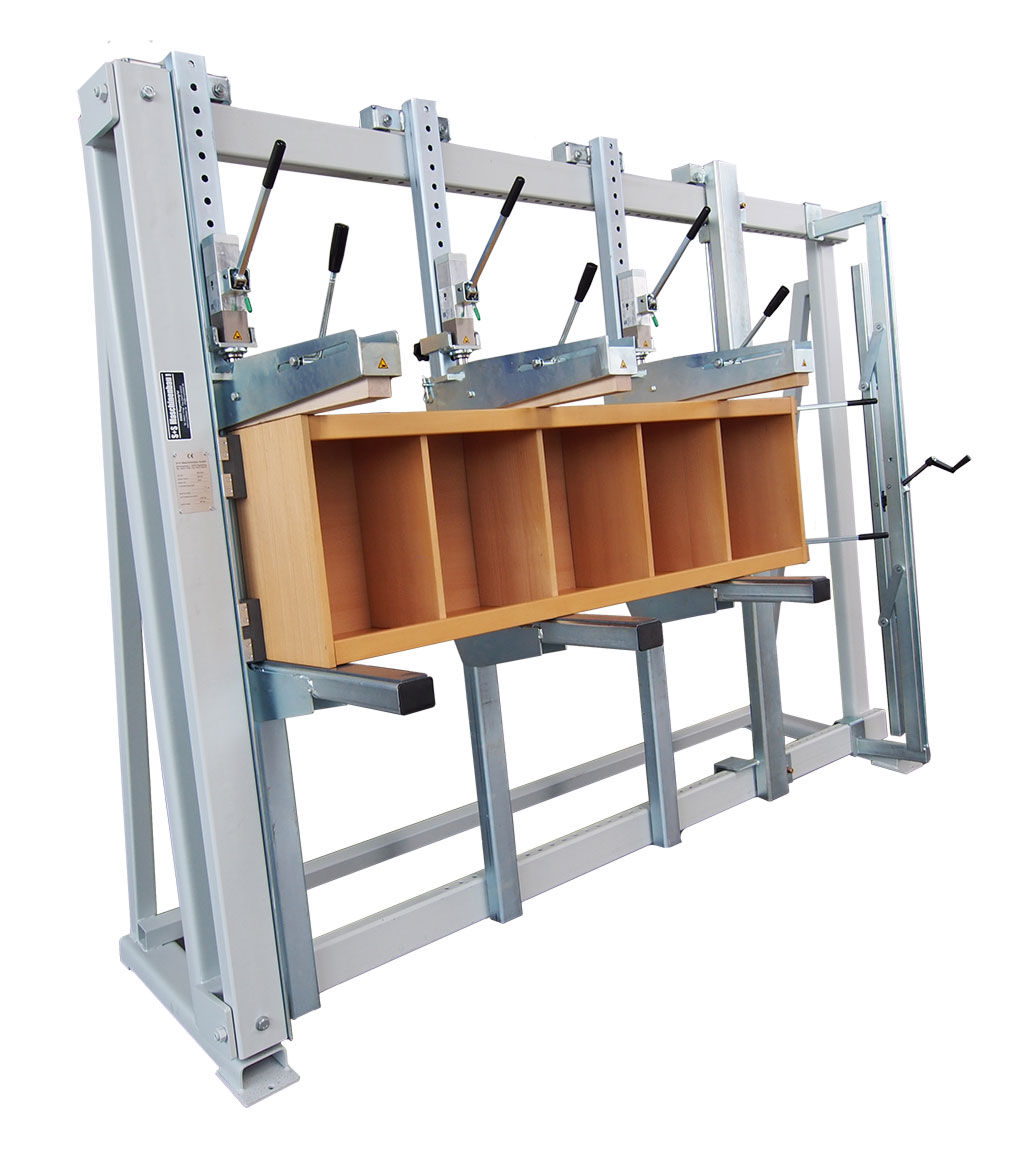

Depending on the equipment, the standard press allows easy clamping of frames or gluing of panels up to a thickness of 60 mm. The use as a carcass or corpus press is also possible with optional accessories.
The welded tubular frame ensures lasting stability.

Gluing press STH DV I/II

  • Welded tubular frame for permanent accuracy
  • One-sided version with adjustable feet, double-sided version with castors
  • Press beam with roller bearings, working height 1.800 mm, manual hydraulic cylinder 60 mm stroke, 2.000 kg press force, cylinder height adjustable in 50 mm increments, abutment height adjustable in 200 mm increments, abutment and pressure plate depth 60 mm, abutment with drop safety device
  • Frame pressing equipment with continuous vertical abutment, roller-bearing carriage for width adjustment in 50 mm increments, 2 continuously height-adjustable horizontal hand hydraulic cylinders with 60 mm stroke, 800 kg pressing force
  • Spindle driven side pressure clamp with continuous pressure rail
  • Side pressure clamp with manual hydraulic cylinder
  • Pendulum pressure plate for inclined workpieces, +/- 30°
  • Surfaces: painted, RAL7035 (light grey), galvanised

type STH DV I basic configuration

  • base frame, 4 pressure beams, 1 holding down clamp
  • working space (wxh): 2.500/3.000 x 1.800 mm
  • overall dimensions (wxhxd): 2.700/3.200 x 2.300 x 800 mm

type STH DV II basic configuration

  • mobile base frame, 8 pressure beams, 2 holding down clamps
  • working space (wxh): 2 x 3.000 x 1.800 mm
  • overall dimensions (wxhxd): 3.200 x 2.300 x 1.200 mm
