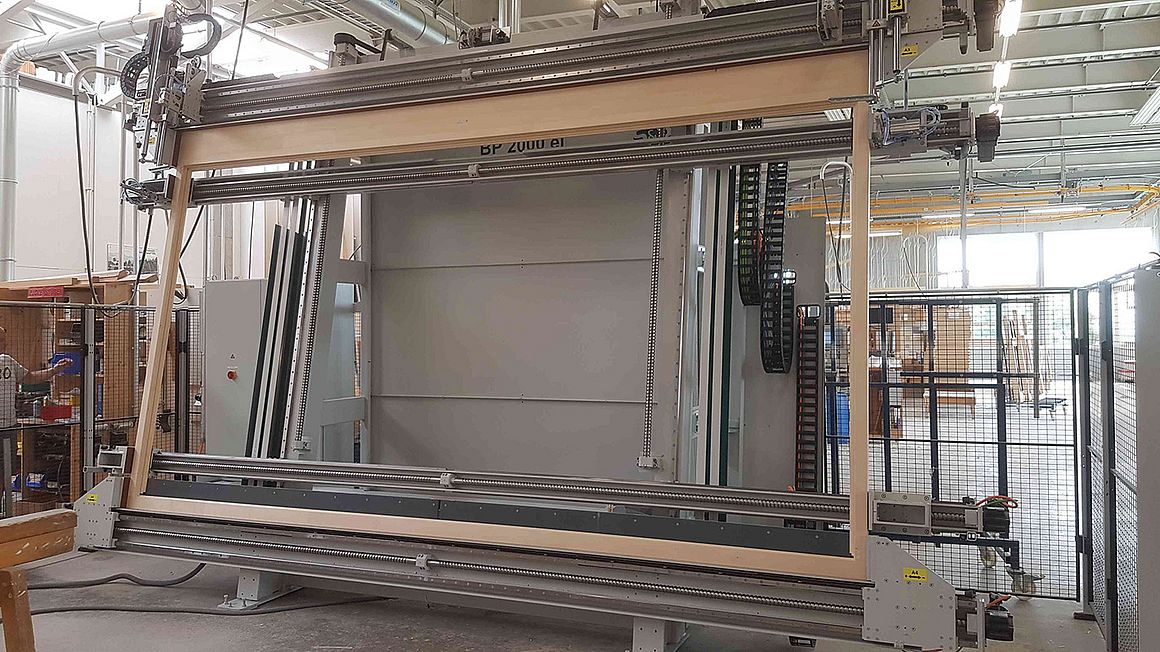

automatic beam press| BP 2000 EL

The BP 2000 EL beam press permits both highly efficient, volume driven series production and rational, highly flexible order-related single item production of complicated, oversized elements.
The continuous data connection minimizes set-up times and accelerates the process organization at the workplace. High rapid traverse speeds for size changes and universal clamping systems adapted to a wide variety of profile systems and corner connections significantly reduce set-up times or eliminate them completely. Program-controlled pressing cycles guarantee process-safe assembly of both filigree and heavy frame elements with extensions. Pressing of finished painted frames, even with pre-assembled clips or fittings is possible.
Ergonomic insertion heights, the loose insertion of the woods, the hauling function for high frames and the low cleaning effort provide noticeable physical relief for the operator.

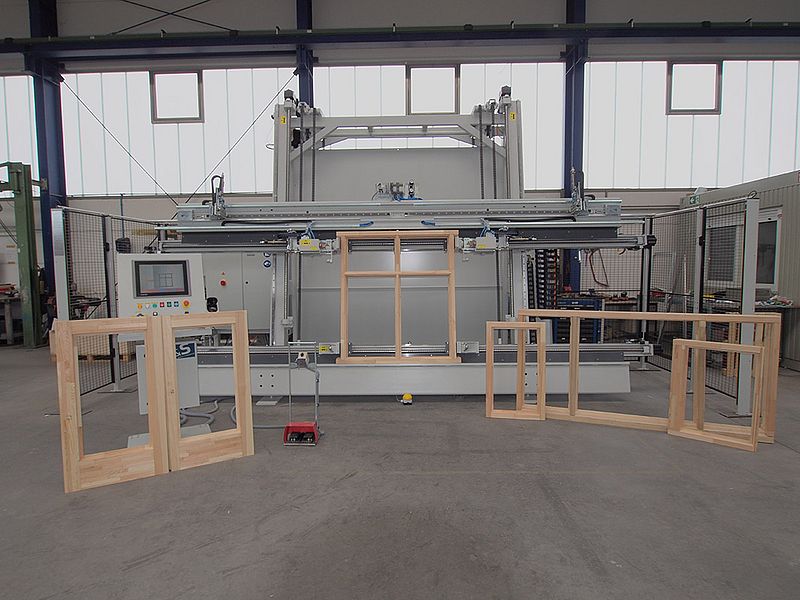

The optional installation of outfeed and transfer systems simplifies handling of oversized frame structures and enables continuous one-man operation as well as integration into assembly lines.

download product flyerPress in Action

Decisive advantages in daily operation

  • Fast, efficient pressing of frames or sashes in one-man operation
  • Significant reduction of unproductive time
  • Universal clamps for loose insertion of the woods independent of the corner joint
  • Ergonomic machine operation even with large frame heights thanks to integrated hauling function for the upper horizontal wood

Technical data (standard version)

Technical data

Press force: 150 – 2.000 kg (per spindle)
Working width: 3.000/4.000/4.500/5.000 mm
Working heights: 1.500/2.600/3.000 mm
Depth: 1.850 mm

Installation dimensions

Width: Working width + 1.200 mm
Depth: approx. 2.100 mm
Height: approx. working height + 900 mm

Accessories

  • Height adjustable bottom press beam
  • Program controlled horizontal press axis
  • Magnetic counter profiles made of glue repellent plastics
  • Pneumatic clamping system and hauling function
  • Automatic nailing systems
  • Unloading or transfer systems

Technical features

  • Highly flexible machine concept for the most diverse tasks: alternating pressing of filigree or solid frames and sashes, simple pressing of complicated frame geometries in one-man operation, assembly of frame extensions on all sides in the press, ...
  • Shortest set-up and adjustment times for product or format changes optimize a varied order-related production
  • Frame sizes up to 5,000 x 3,000 mm
  • Data connection combined with barcode or RFID scanners enable paperless production.
  • Predefined interfaces to all common window design programs
  • Simple, intuitive operating concept
  • Optimum operator information thanks to large displays for relevant job information
  • Automatic adaptation of the press parameters to the frame or sash type
  • Ergonomic loading and unloading position even for very large or small frames thanks to optionally adjustable abutment beams

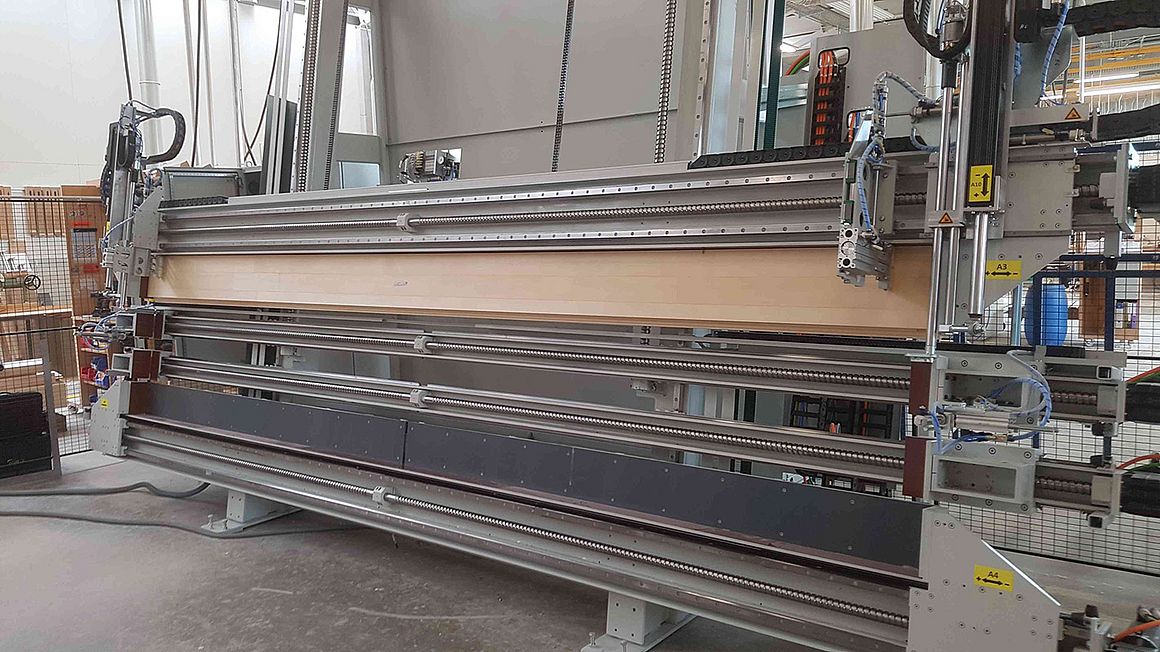

  • Pneumatic clamping systems in combination with a hauling function for the upper horizontal wood allow loose insertion for a wide variety of corner joints.

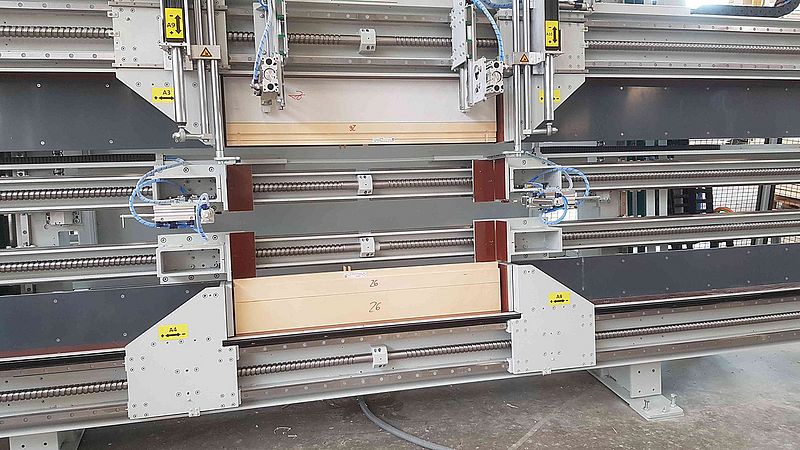

  • Magnetic, easily exchangeable counter blocks for outside profiled sashes or rebated frames
  • Program-controlled pressing movements with force and dimension monitoring

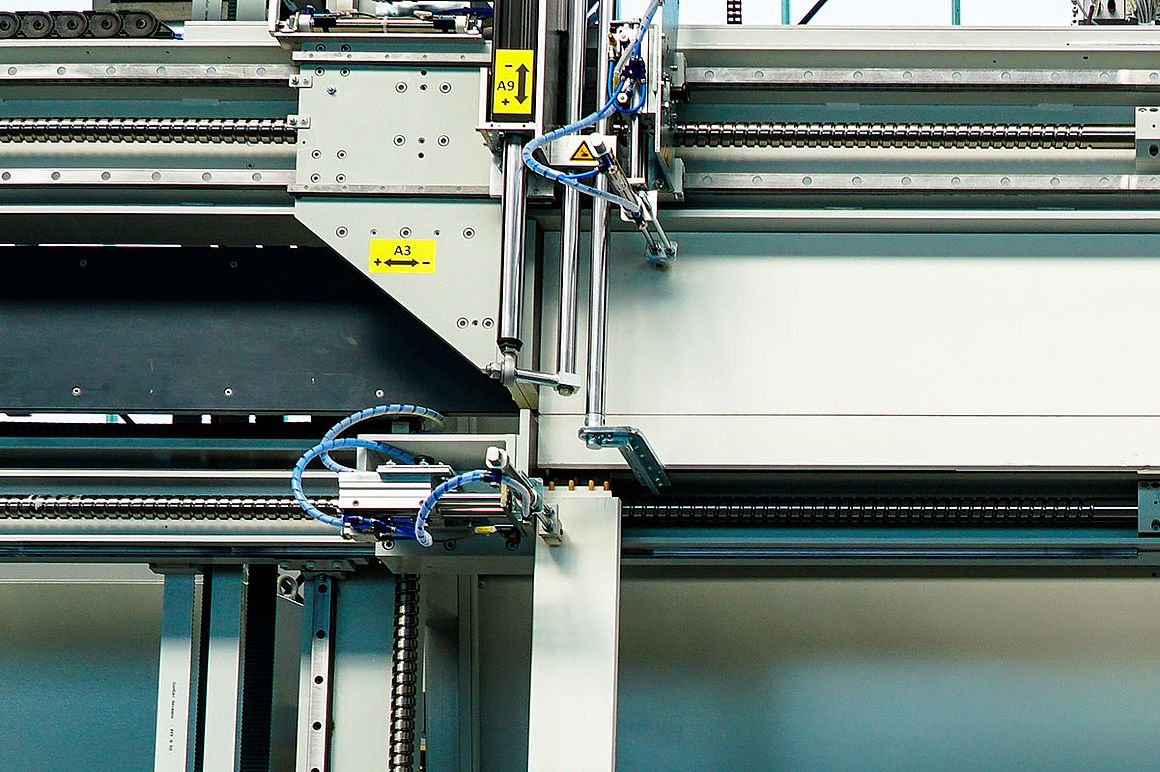

  • High-quality, oversized drive components (ball screws, linear guides, servo drives with absolute displacement measuring systems, etc.) guarantee permanently precise, low-maintenance and low-wear operation.
  • Low cleaning effort due to glue-repellent coatings on all contact surfaces
  • Installation of automatic nailing units possible

Extensive accessories

  • Height adjustable abutment beam
  • Program-controlled intermediate horizontal pressure axis
  • Magnetic counter blocks made of glue-repellent plastics
  • Pneumatic clamps and hauling function
  • Automatic nailing units
  • Discharge systems
  • Manual operation via foot switch for pressing of complicated frames
  • Printer integration
  • Press data logging

Beam Press BP 2000 el|in action
